Powder Coated Wire Mesh Fence Panels Security Welded 358 Prison Mesh Fencing

Powder Coated 358 security Welded Anti Climbing Prison Mesh Fencing used in school, residential and recreational sites​

We are specialized company operating in the design, manufacture and installation of high security fencing systems for civil, industrial and military projects. Our company offers the most effective and affordable safety fencing solutions. Our product range includes 358 mesh fencing, 3510 mesh fence, anti climb fence, clear view fencing, twin wire fence, paladin fence, top roll mesh panels, fence post and other accessories.

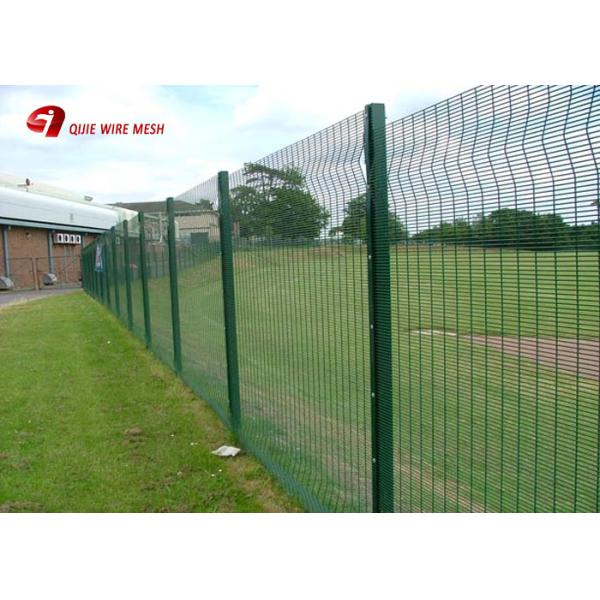

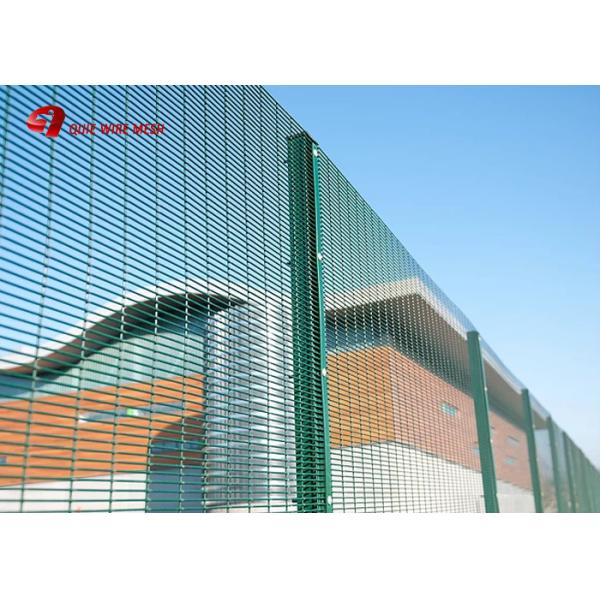

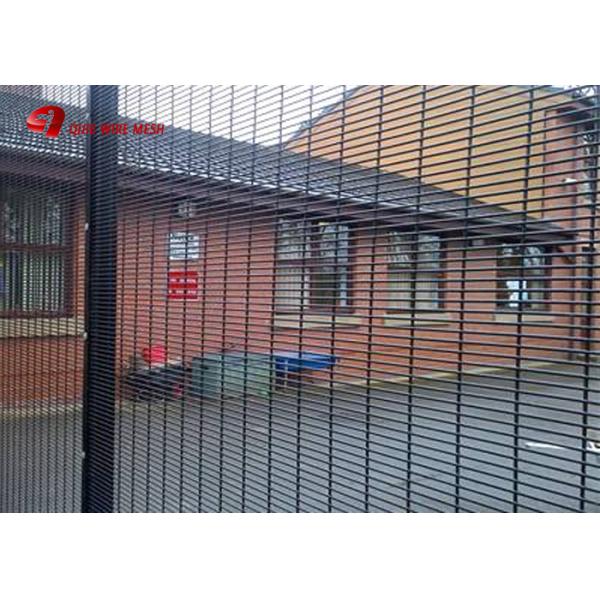

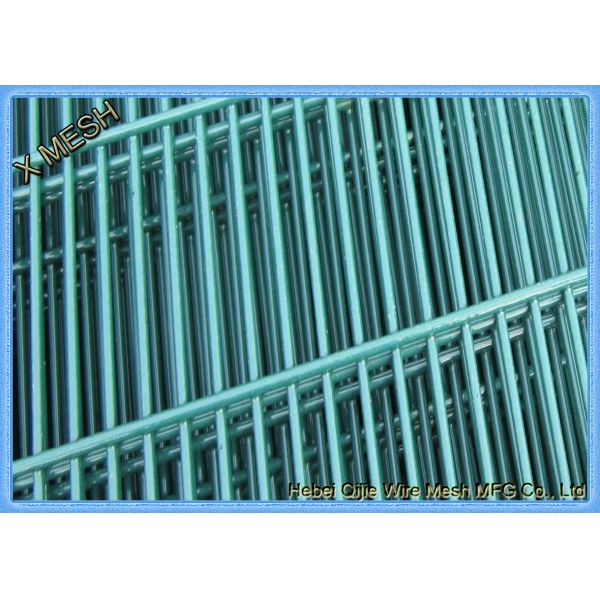

358 mesh fence is featured by the design that combines the high security and perfect aesthetic effect. Panel sections are welded wire mesh with small rectangular openings 76.2 mm × 12.7 mm made from 4 mm galfan steel wires, and welded well at each intersection, then PVC powder coating with green RAL 6005 or black RAL 9005 color, which provides a protective anti-corrosion property for 10 years. The high security 358 welded mesh fencing is extremely difficult to penetrate and difficult to attack by using conventional tools. Because of the anti-climbing and anti-cutting features, 358 welded mesh security fencing is also called anti climb fence. It is usually used for fencing where require high levels of security, such as airport, prison and military establishments, so 358 mesh is also called prison fencing. This kind of welded panel width is 2515 mm and height from 2007 mm to 3302 mm. Several panels can be installed on the top of each other, thus the 358 mesh fencing can achieve a total height of 6300 mm.

There are two enhanced versions of 358 mesh: 2D security fencing and 3D security fencing. 2D fence panels increase strength by 6 mm vertical wire and additional 4 mm wires at 152.4 mm centers on the inside face. It has double horizontal wires at 152.4 mm centers. This structure makes the fence panel very rigid and has a higher level of strength and security than common 358 mesh fence. 2D security fencing is widely used for schools, industrial sites, infrastructure, and other high security areas. 3D security fence enhanced its safety and appearance level with pressed horizontal "V" shaped beams. It is a unique barrier solution which combines a high level of safety requirement and aesthetic effect.

Common Panel Size:

Finish
Forms of corrosion resistance include electric galvanizing, hot-dipp galvanizing, PVC spraying and PVC coating.
Colours: Standard colours are Green RAL6005, Black RAL9005 and Yellow RAL1021.
Other colours are available on request

Note:

• Our fence wire diameter varies from 2–6.5 mm, mesh opening could be 75 mm × 12.5 mm, 100 mm × 15 mm, other opening size available under request.
• Maximum width is 2.515 m. 2.0 m and 2.2 m is also available under request.
• Fence height varies from 2.0 m to 5.2 m.
• 3 m height fence is usually used in school, residential and recreational sites, 5.2 m height used in prison and military establishments.
• Our 358 high security mesh fencing could be manufactured with double layers of vertical wires in order to satisfy the highest level of security requirement.

358 mesh fence panels packaging:

358 mesh fence panels packed in wooden pallets and enveloped by plastic film then wrapped by tape firmly for the security of storage and transportation.

installation of mesh panels to posts

358 mesh fence-MF0001

358 mesh fence-MF0002

358 mesh fence-MF0003

358 mesh fence-MF0004

metal security fence panels

metal wire fence panels

Powder Coated Wire Mesh Fence Panels Security Welded 358 Prison Mesh Fencing Images
